SPARE PARTS

SPARE PARTS FOR DARSHAN ROYAL BOX STITCHER WORKING INSTRUCTIONS FOR DARSHAN ROYAL STITCHERS

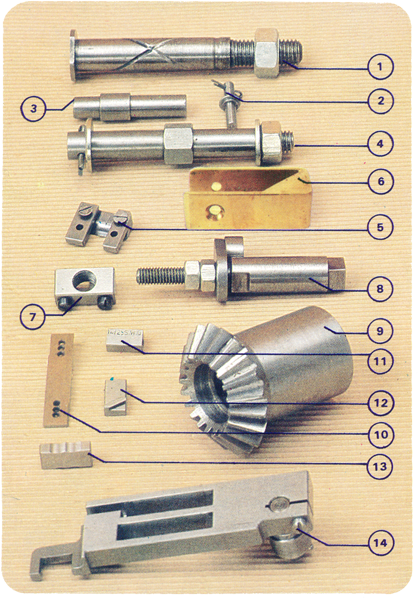

  • 01AXIS PIN FOR CAM
  • 02AXIS PIN FOR FS102
  • 03AXIS PIN FEED LEVER
  • 04 AXIS PIN FOR CLINCHER LEVER
  • 05BACK PLATE- STRAIGHT
  • 06BACK PLATE- ANGULAR
  • 07BLOCK FOR SCREW
  • 08BRAKE PLATE WITH CLUTCH BOLT
  • 09BEVEL GEAR FOR MAIN SHAFT
  • 10CUTTING KNIFE
  • 11CUTTING TUBE 12 X 25
  • 12 CLINCHER RAM - STRAIGHT
  • 13 CLINCHER RAM - ANGULAR
  • 14 CUT-OFF SLIDE

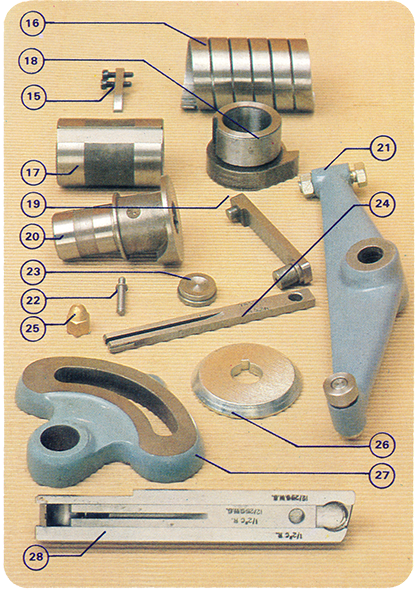

  • 15CAM PLATE
  • 16CLUTCH SPRING
  • 17CLUTCH SLEEVE
  • 18 CLUTCH PAWL
  • 19CONNECTING LINK
  • 20CLINCHER CAM
  • 21CLINCHER LEVER WITH BOLT
  • 22CENTER PIN FOR SPRING
  • 23 CLINCHER DIE FOR BOTTOM STITCHER
  • 24 DRIVER 12 X 25
  • 25 DOOM NUT
  • 26 END PLATE
  • 27 ECCENTRIC ADJUSTER
  • 28 FORMER DRIVER WITH STAPLE SUPPORT
  • 29FEEDER BLOCK
  • 30FEED ADJUSTING SCREW
  • 31 FEED LEVER (GUN METAL)
  • 32FEEDER SLIDE WITH SCREW, BLOCK & SPRING
  • 33 FORMER ROLLER
  • 34FEED RETURN SPRING
  • 35FEED SPRING ANCHORAGE
  • 36 GRIPPER BLOCK
  • 37LOOP BAR 12 X 25
  • 38LOOP BAR SUPPORTER
  • 39LEVER FOR FEEDER (SMALL LINK)
  • 40 LOOP BAR SPRING
  • 41LONG SCREW

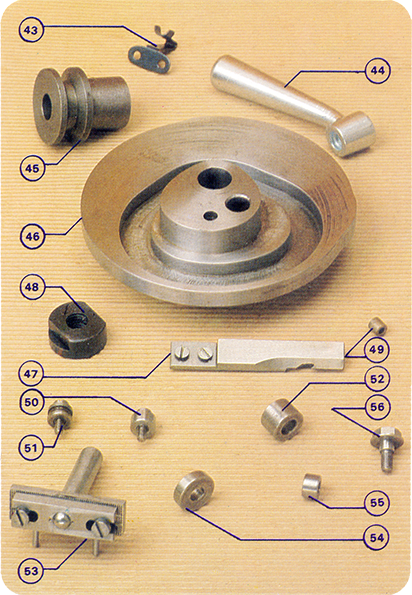

  • 42 LOCKING SPRING AS 129
  • 43LOCKING SPRING AS 130
  • 44 LOCKING HANDLE
  • 45 MOTOR PULLEY
  • 46 MAIN CAM WITH BEVEL
  • 47 PUSH BAR FRONT PORTION
  • 48FEED RETURN SPRING
  • 49ROLLER FOR FEEDER
  • 50 ROLLER WITH SCREW NO. 71
  • 51 ROLLER WITH SCREW NO. 81
  • 52ROLLER FOR CUT-OFF-SLIDE
  • 53REBOUND PAWL
  • 54 ROLLER FS 133
  • 55ROLLER FEED LEVER
  • 56 SHORT SCREW
  • 57SCREW FOR LOOP BAR SPRING

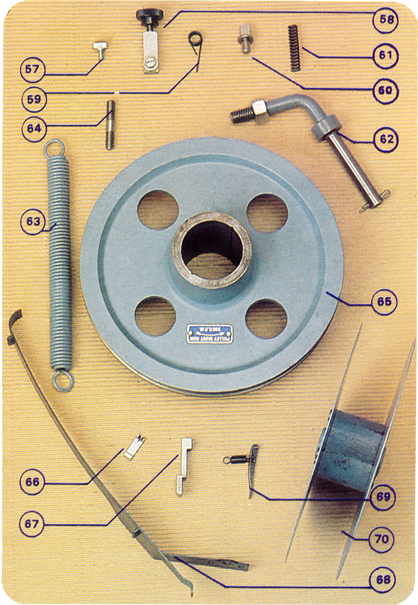

  • 58SLIDER WITH ADJUSTING NUT & ROLLER
  • 59SPRING FS 101
  • 60STOP PIN FOR SPRING
  • 61SPRING FOR CUT-OFF-SLIDE
  • 62STAND FOR WIRE SPOOL
  • 63TREADLE SPRING
  • 64TOP STUD
  • 65'V' BELT PULLEY(9" DIA.)
  • 66WIRE GUIDE
  • 67WIRE GRIPPER
  • 68WIRE GUIDE SPRING
  • 69WIRE HOLDER WITH SPRING
  • 70WIRE SPOOL
