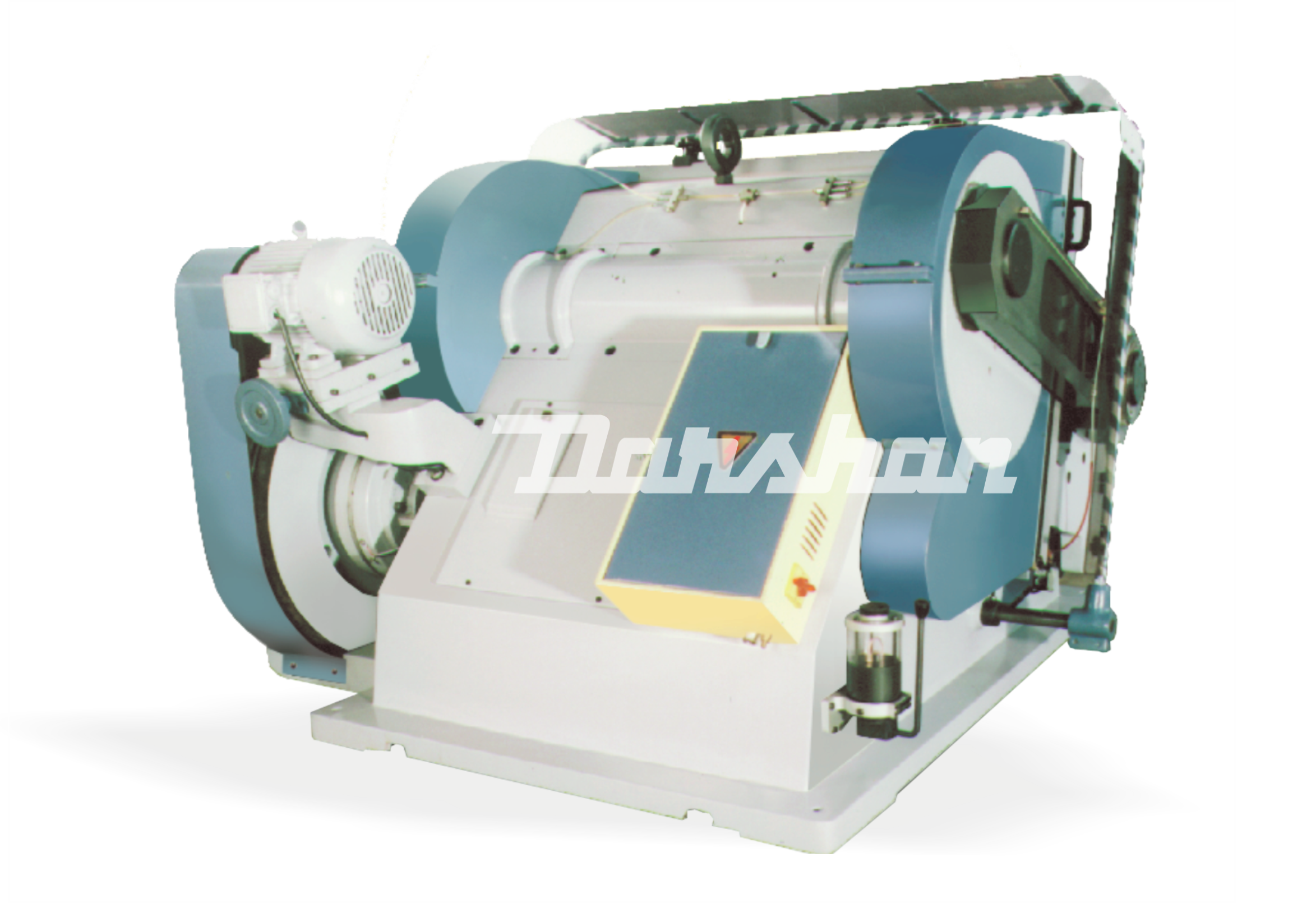

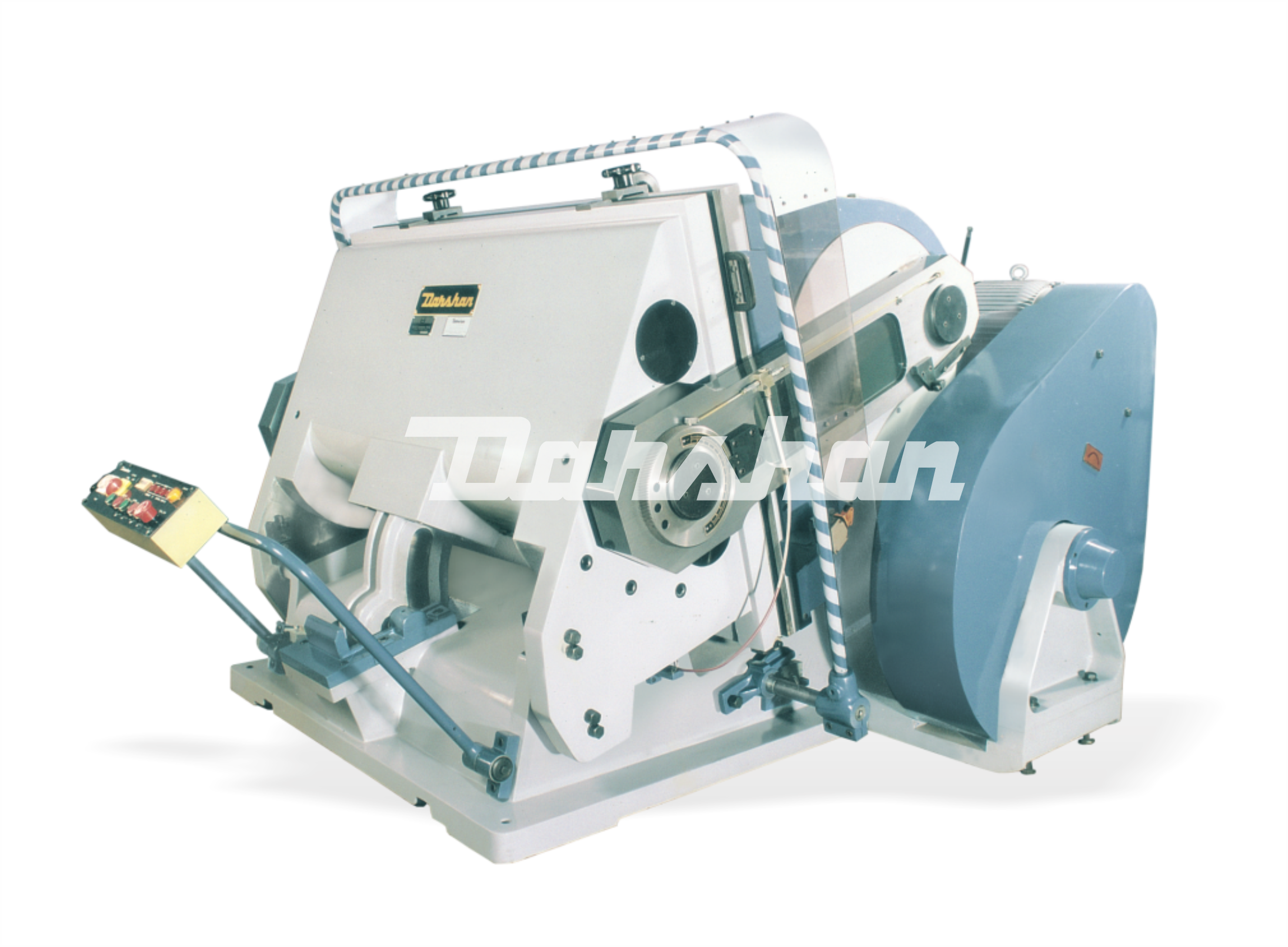

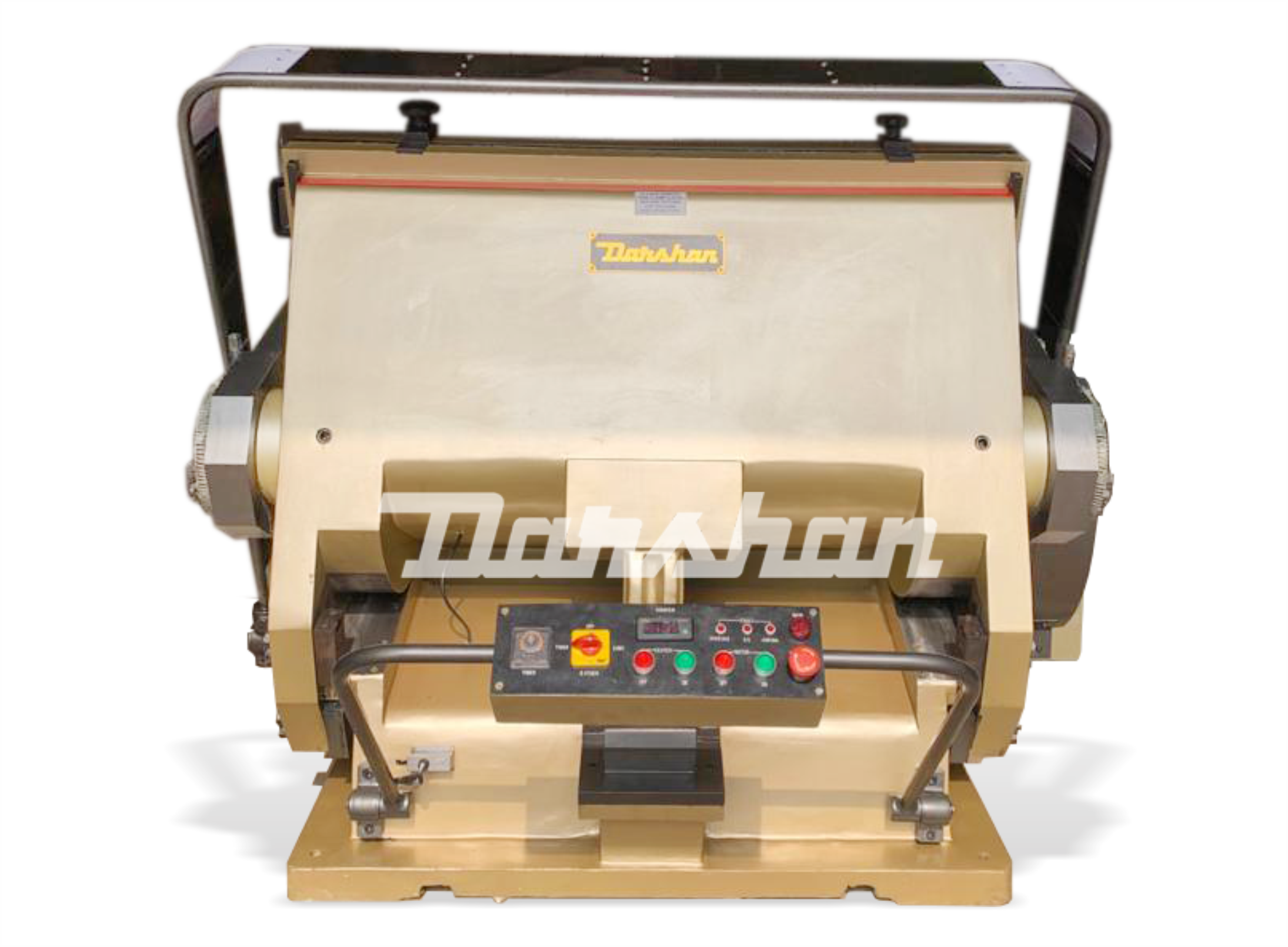

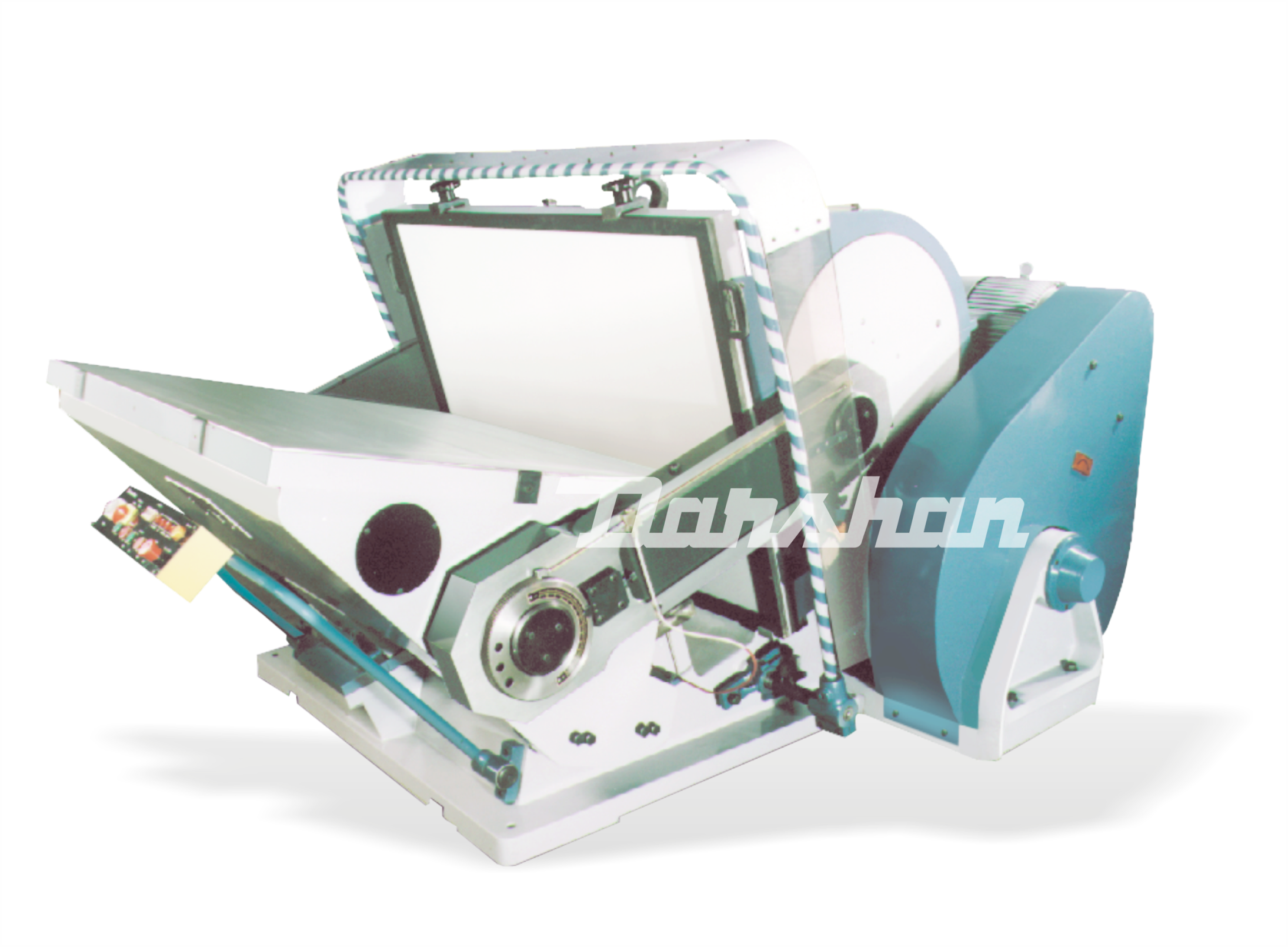

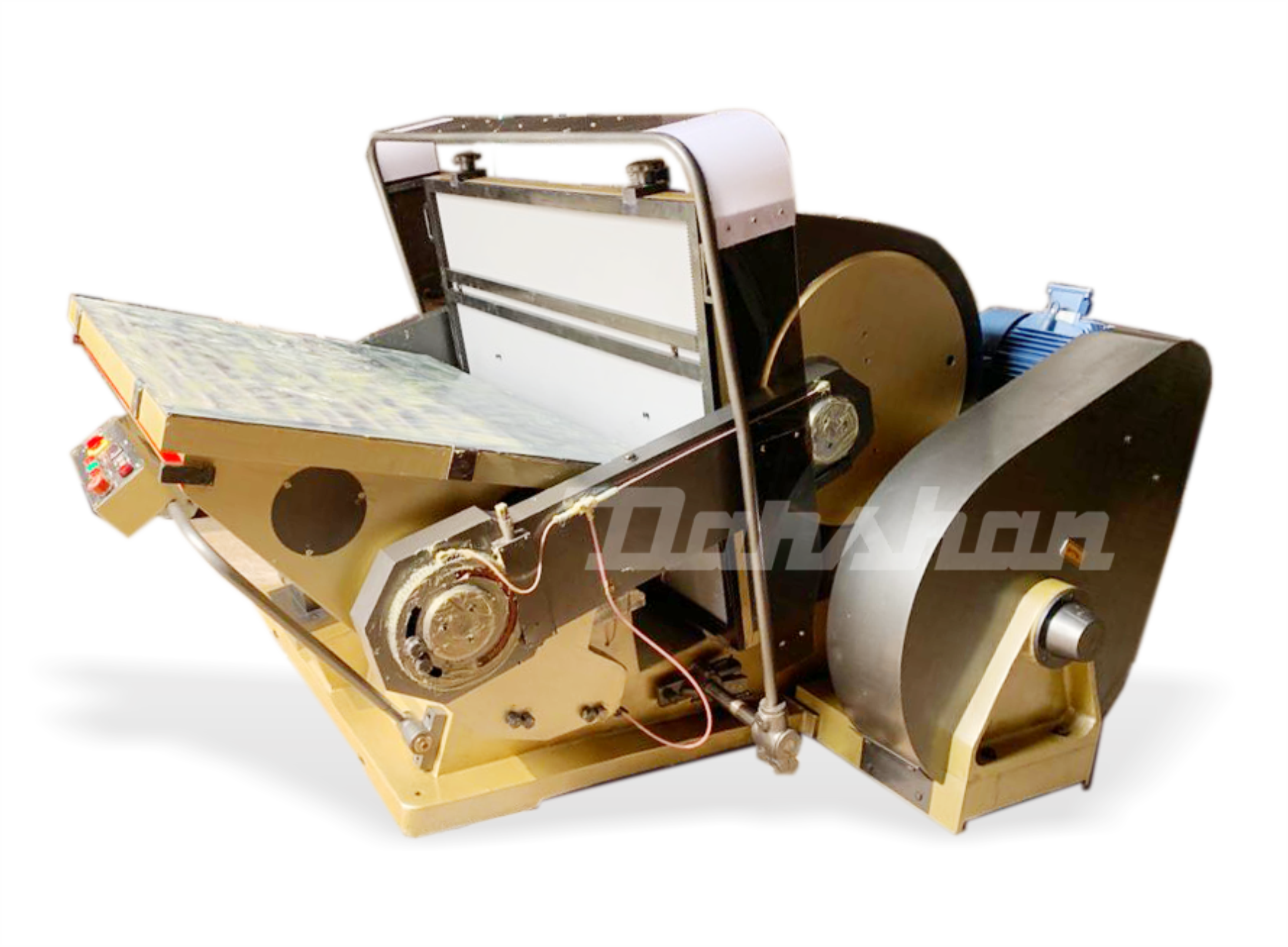

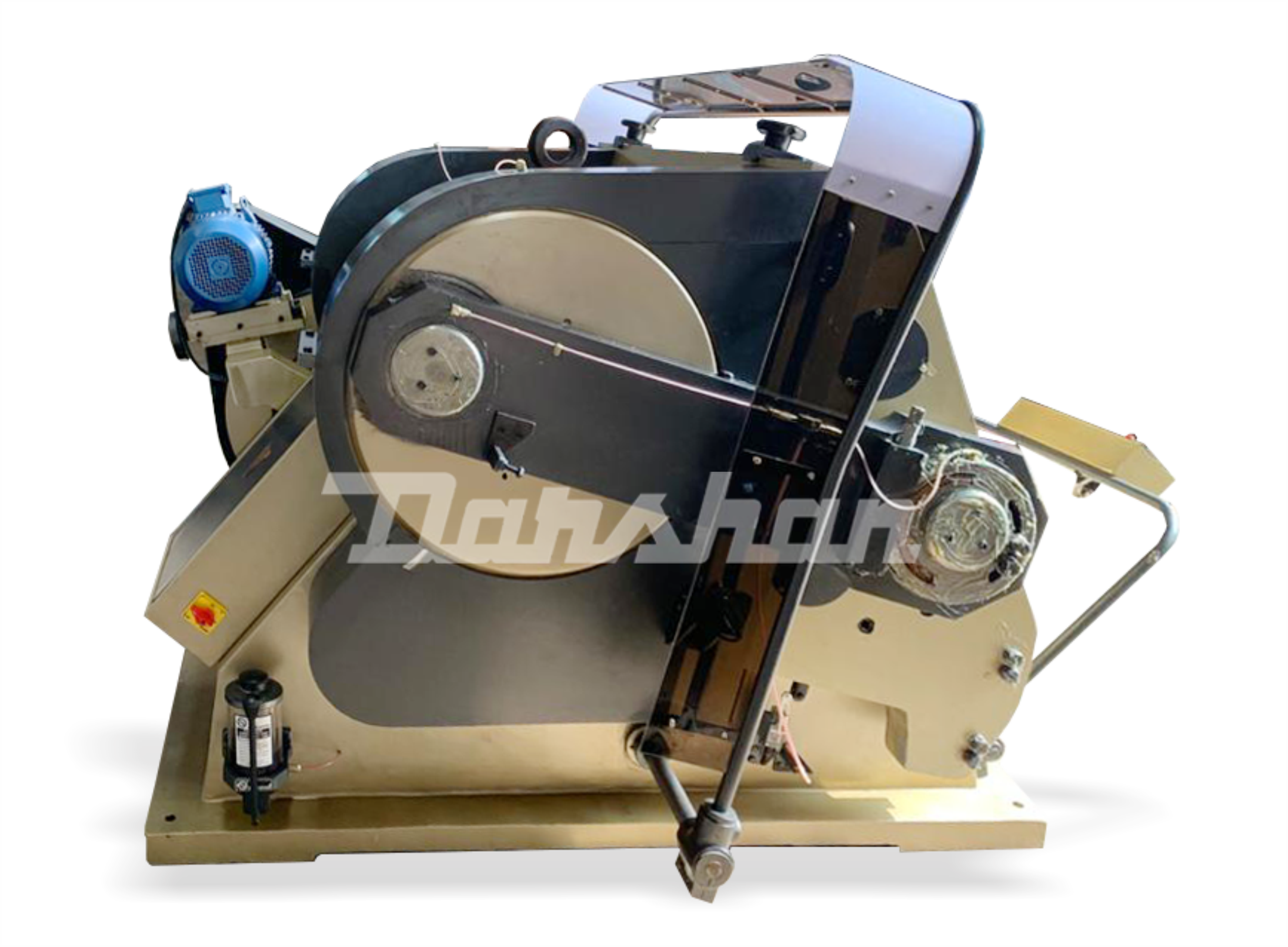

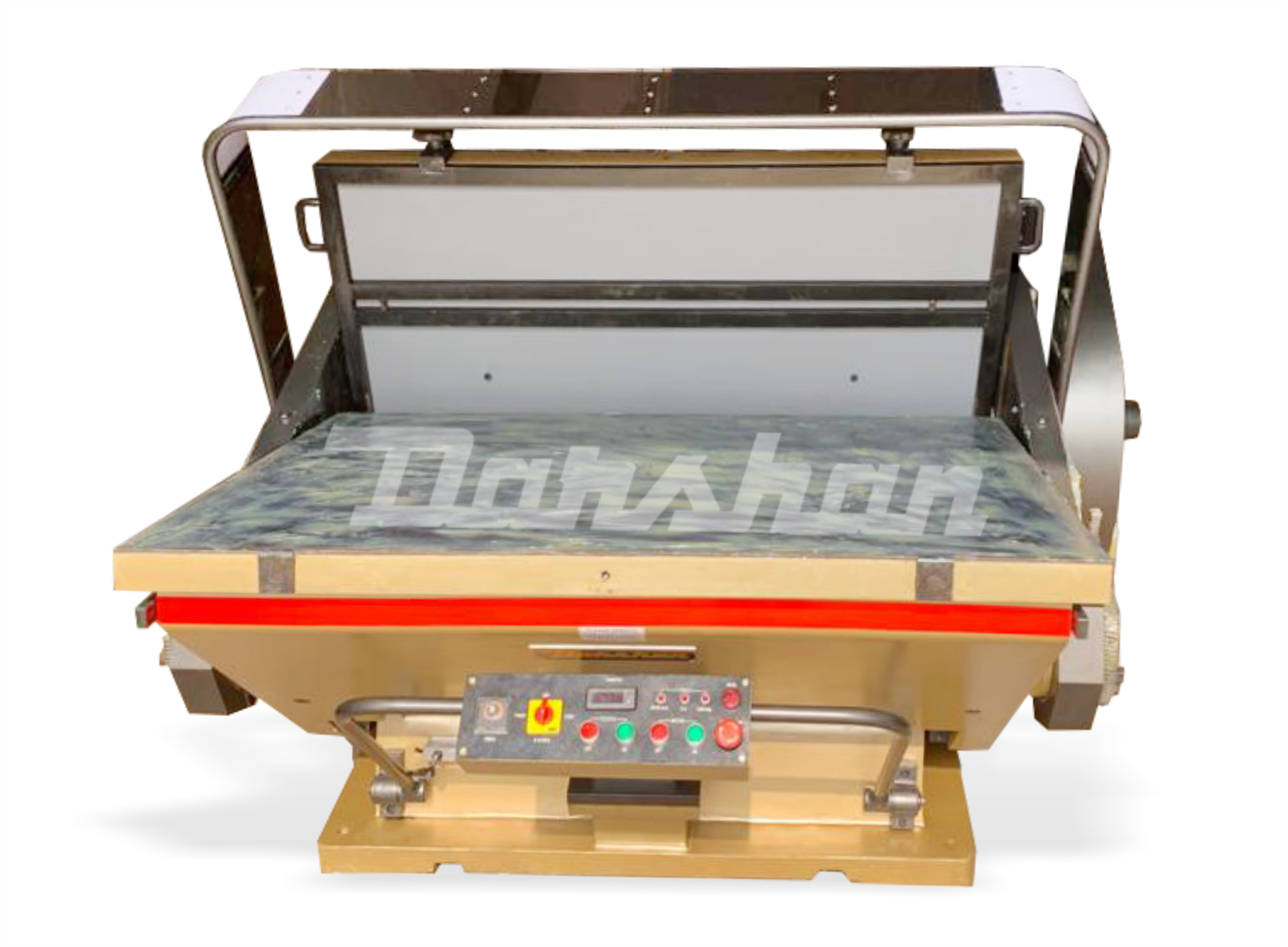

PLATEN PUNCHING PRESS
FOR CARD BOARD, CORRUGATED BOARD & OTHER MATERIAL

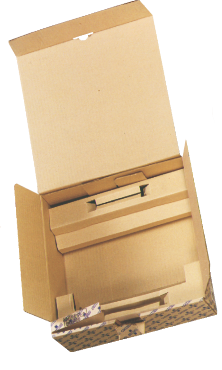

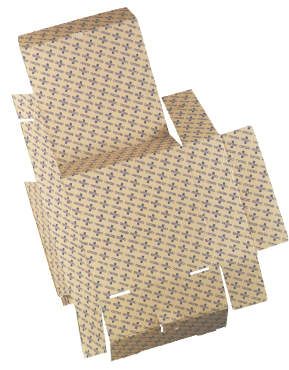

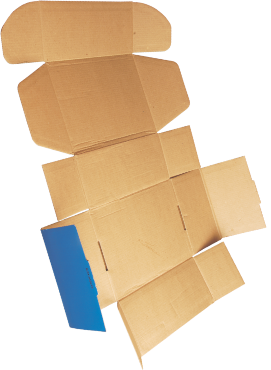

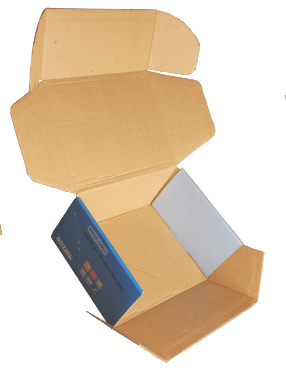

- Cutting & Creasing Platen Press designed to handle Cutting, Creasing & Embossing of paper, solid board,corrugated board, micro flute, plastic, rubber, linoleum, leather, etc. using Flat cutting die.
- Heavy duty machine with Electro magnetic Clutch & Brake System.
- Single dwell facility. Platen open dwell is infinitely variable
- Convenient position of Control Panel located in front of the machine
- Machine supplied with One Normal Chase and One adjustable Chase
- Machine fitted with wrap around Safety Device centralized Lubrication System
- Machine supplied with Automatic Sheet Counter & Complete Electrical Installation
- One set of service tools supplied with machine.
Technical Statistics:
| Model | Platen Size | Inside Chase | Impression per hour | Floor Space | Pressure Exerted | Motor HP | Weight KGS(Approx) |
|---|---|---|---|---|---|---|---|
| D-2232 | 25" X 35" 63 X 88 CMS |
22" X 32" 55 X 81 CMS |
1300/1500 Min Max | 60" X 50" 152 X 127 Cms |
210 tn | 3 | 3500 |
| D-2527 | 28" X 40" 70 X 100 CMS |
25" X 37" 63 X 93 CMS |
1200/1400 Min Max | 66" X 55" 165 X 139 Cms |
260 tn | 5 | 4500 |
| D-3343 | 36" X 46" 91 X 117 CMS |
33" X 43" 84 X 110 CMS |
1000/1200 Min Max | 70" X 60" 177 X 152 Cms |
300 tn | 7.5 | 6000 |
| D-3752 | 40" X 55" 102 X 140 CMS |
37" X 52" 94 X 132 CMS |
1000/1200 Min Max | 77" X 72" 195 X 182 Cms |
360 tn | 7.5 | 7500 |
| D-4262 | 45" X 65" 114 X 165 CMS |
42" X 62" 106 X 157 CMS |
900/1000 Min Max | 85" X 80" 215 X 203 Cms |
380 tn | 10 | 10500 |
| D-4868 | 52" X 72" 132 X 183 CMS |
48" X 68" 121 X 172 CMS |
900/1000 Min Max | 95" X 90" 240 X 228 Cms |
450 tn | 10 | 13500 |
